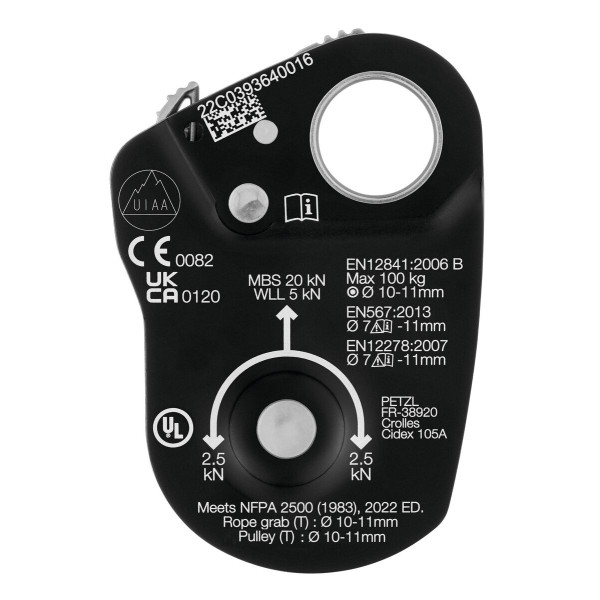

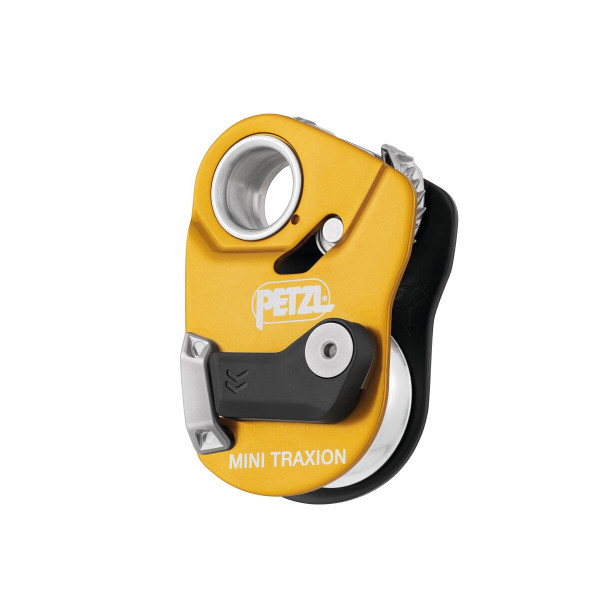

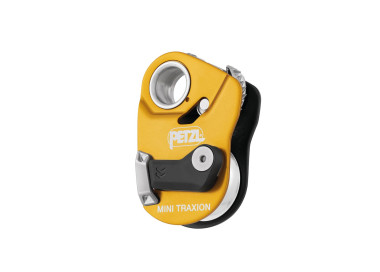

MINI TRAXION PROGRESS CAPTURE PULLEY

MINI TRAXION PROGRESS CAPTURE PULLEY

star_border star_border star_border star_border star_border
(0)
kr10,646
Quantity
Last items in stock

  • High-efficiency, openable progress-capture pulley

    Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor.

  • The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %).

  • The cam can be locked in the open position so the device can be used as a simple pulley.



If you are not happy with your purchase you can always return the product

MINI TRAXION PROGRESS CAPTURE PULLEY

High-efficiency progress-capture pulley designed for hauling and rescue:

Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads

Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty

For use on 7 to 11 mm diameter ropes

Simple to use:

Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it

Triple-action opening of the moving side plate is quick and easy, even with gloves

May be used as a simple pulley by locking the cam in the raised position

Compact and lightweight (150 g)

Durable:

Special side plate design protects the rope path

Stainless steel toothed cam for optimal durability

Specifications

  • Weight: 150 g
  • Certification(s): CE EN 567, UIAA
  • Material(s): Aluminum, stainless steel, nylon
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 11 mm
  • Sheave type: Sealed ball bearings
  • Sheave diameter: 32 mm
  • Working load: 2 x 2.5 = 5 kN
  • Breaking strength: 2 x 10 = 20 kN
  • Working load as progress capture pulley: 2,5 kN
  • Breaking strength as progress capture pulley: 4 kN
  • Efficiency: 93 %
  • Compatible with the RAD LINE 6 MM cord
  • Compatible with the PUR’LINE 6 MM cord only for hauling a pack
LPP09

Data sheet

BREAKING STRENGTH
4 kN
WEIGHT
150 gr
ROPE DIAMETER
from 7 to 11
MATERIAL
Aluminium, stainless steel, polyamide
PULLEY EFFICIENCY
93%
COUNTRY OF MANUFACTURING
France
CERTIFICATION
CE EN 567, UIAA
